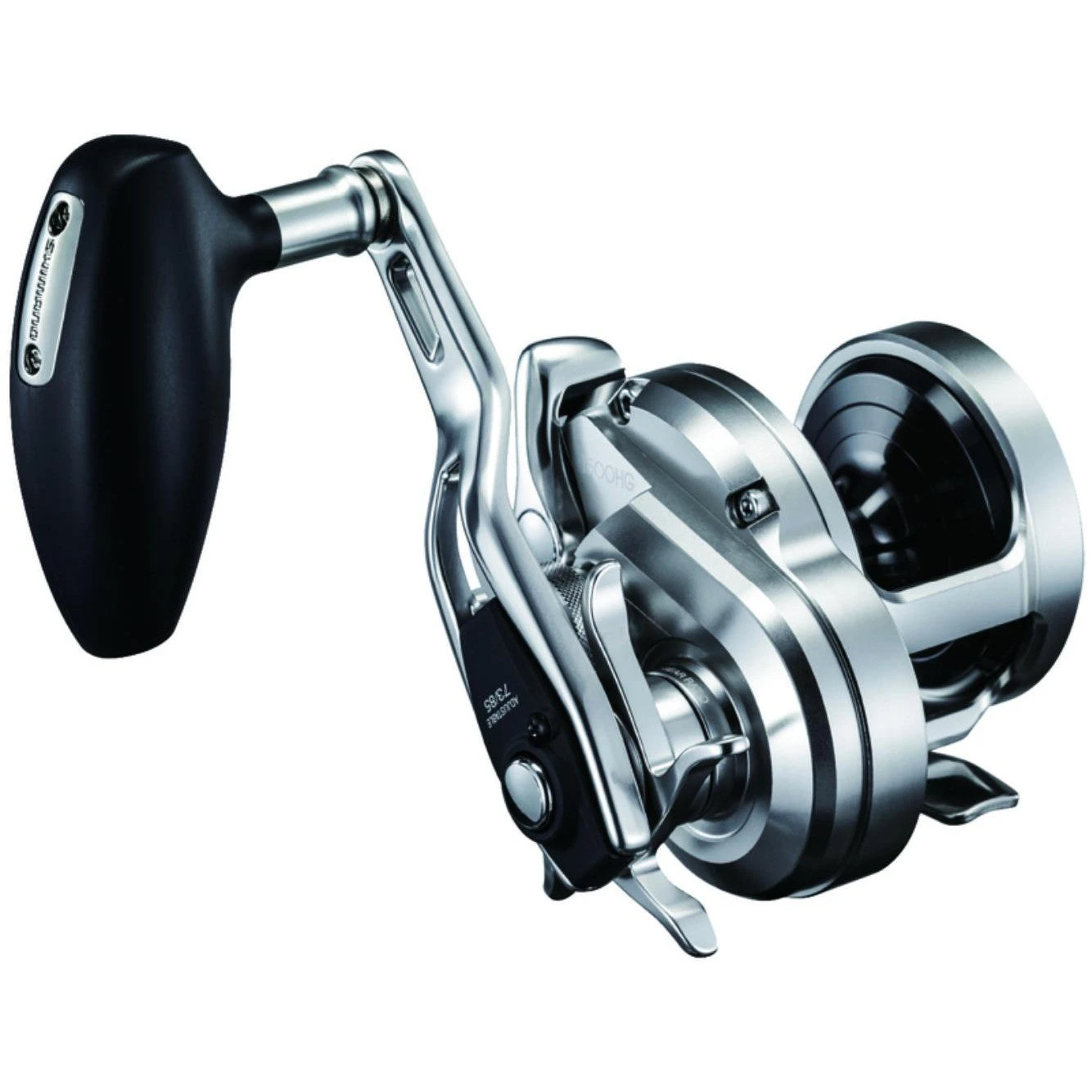

Shimano Ocea Jigger Star Drag Reels

Very often, when someone mentions Shimano Ocea Jigger, the image of a refined jigging reel comes to mind. So how do you improve a legend? For Shimano, we start where it matters most, The Core. Fusing our most advanced manufacturing capabilities with the wants of anglers; we’ve made the 2017 Ocea Jigger’s cranking action even lighter and smoother than before while maintaining un-compromised strength and durability. Incorporating MicroModule gears, Infinity Drive and a cold forged long crank handle, the 2017 Ocea Jigger’s rotational resistance has been successfully reduced by approximately 60%. The new Jigger also features X-Protect, previously found only on the 2017 Twinpower XD. With X-Protect, waterproofing capabilities is greatly enhanced as water is prevented from entering the drive gear shaft and spool shaft bearing. On the exterior, a new star shape drag is added to lower the risk of line entanglement in high wind conditions. Minor tweaks have been made to the Hagane Body to give you a more comfortable grip. Never judge a reel by its covers because… Beauty comes from within.

Shimano Ocea Jigger Features:

• Two position adjustable long crank handle offers all day jigging comfort
• Exciting drag sound allows anglers to know when they are in jeopardy of pulling hooks or breaking off
• Auto-Clutch return to easily bring the reel in and out of free-spool and react quickly to bites
• Spool lock allows anglers to more safely break off when they snag bottom
• New trouble free drag star design which allows for easy adjustment
• E.I. coating on the spool surface in order to prevent corrosion
• HG and PG gear ratios to properly pair with various jigging styles
• Shimano’s best-in-class S-ARB bearings to provide long lasting performance

Model	LINE RETRIEVE PER CRANK	RETRIEVE	MAX DRAG	GEAR RATIO	POWERPRO LINE CAPACITY	WEIGHT	BEARINGS
1500HG	39	Right	15	6.4:1	40/300, 50/250, 65/180	14.3	8+1
1500PG	31	Right	17	5.1:1	40/300, 50/250, 65/180	14.3	8+1
2000NRHG	46	Right	22	6.2:1	40/400, 50/340, 65/250	21	8+1
2000NRPG	38	Right	22	5.1:1	40/400, 50/340, 65/250	21	8+1
4000	40	Right	40	4.4:1	50/740, 65/540, 80/450	27.7	6+1
4000HG	46	Right	40	5.1:1	50/740, 65/540, 80/450	27.9	6+1
